SwissSTIM® TRIGGER SYSTEM

The SwissSTIM® remote switch allows the therapist to perform functional stimulation by controlling the duration of the contraction. Therefore it is strongly recommanded to only use the external remote switch in the presence of a qualified practician.

The Trigger system consists of an external switch box which plugs into the SwissSTIM® device.

SwissSTIM Trigger with remote switch

TRIGGER SPECIFICATIONS

The trigger program offers three customizable parameters:

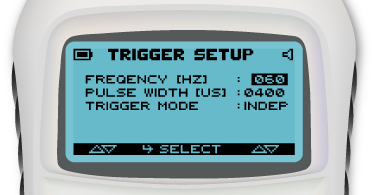

SwissSTIM Trigger display

FREQUENCY

Set the frequency in Hertz [Hz] of the train of impulses.

IMPULSE WIDTH

Set the impulse width in microseconds [µs].

MODE

Select one of the three modes of operation:

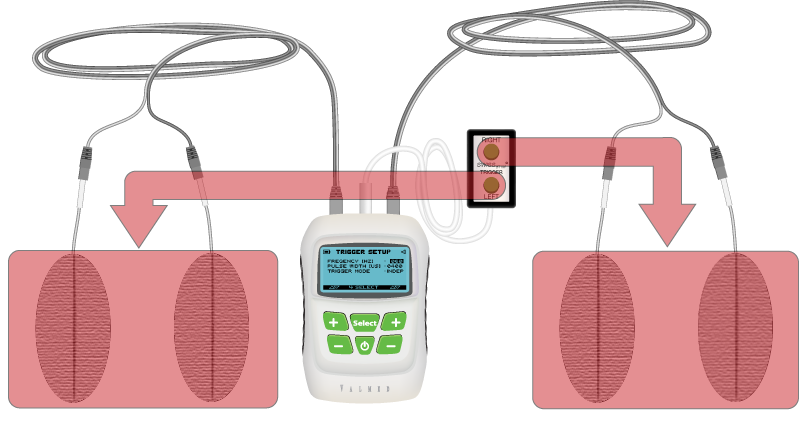

INDEPENDANT

The stimulation is activated independently on each channel. The right channel is activated by holding down the right button and the left channel is activated by holding down the left button.

SwissSTIM Trigger independant mode

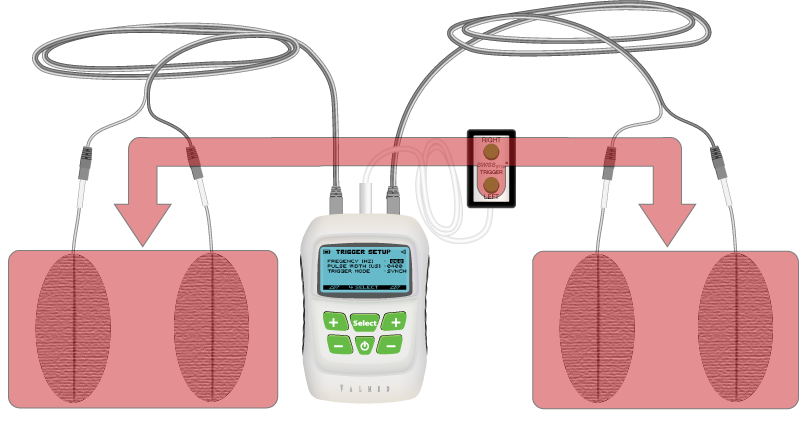

SYNCHRONIZED

The stimulation is activated simultaneously on both channels regardless of the activated button.

SwissSTIM Trigger synchronized mode

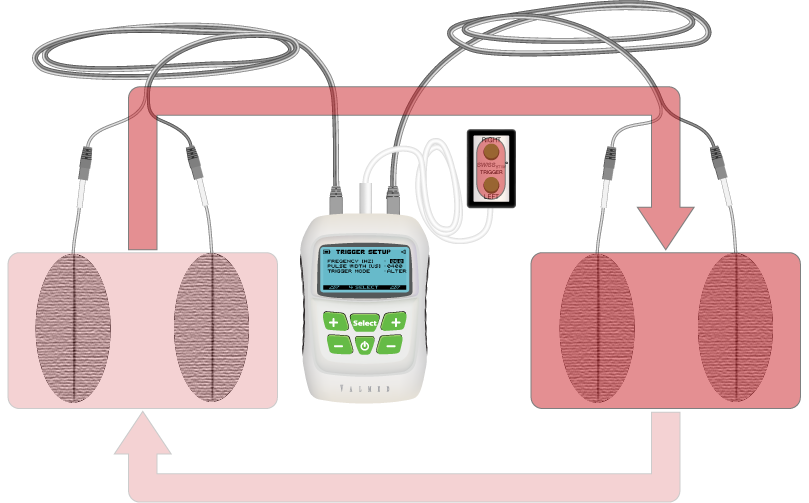

ALTERNATED

The stimulation is activated alternately from one channel to the other every time a button is activated.

SwissSTIM Trigger alternated mode
